Single View Shipping and Receiving Department Solutions

HI-SCAN 6040c X-ray Inspection System

HI-SCAN 6040c X-ray Inspection Systems

The HI-SCAN 6040c is an ideal system for security checks in entrance areas. The system is film safe and able to penetrate up to 37 mm of steel. Using HI-MATPlus, the scanned objects can be visualized as classified material groups allowing the operator to easily and precisely identify contents. The excellent technical feature set facilitates maximum inspection quality at minimum inspection time.

Tunnel Size: 24.4 in. wide x 16.5 in. high


HI-SCAN 6040i X-ray Inspection System

HI-SCAN 6040i X-ray Inspection Systems

The HI-SCAN 6040i offers operating personnel optimum support to make decisions and reduces inspection times considerably. This compact X-ray inspection system provides high image resolution and 24 Bit real time image processing. The man-machine interface is ergonomically designed to reduce operator fatigue. Typical penetration for the HI-SCAN 6040i is 31 mm of steel and the wire resolution is up to AWG 40. With a larger tunnel size than the HI-SCAN 6030di, the HI-SCAN 6040i is well suited for larger personal objects or packages.

Tunnel Size: 24.4 in. wide x 16.5 in. high


HI-SCAN 6046si X-Ray Inspection System

HI-SCAN 6064si X-ray Inspection Systems

The HI-SCAN 6046si X-ray inspection system's drastically enhanced image resolution of scanned objects represents a decisive advantage for image evaluations in security areas. With up to 37 mm of steel penetration and wire resolution up to AWG 41, the HI-SCAN 6046si produces extremely detailed X-ray images. The high resolution image display has double the resolution of previous X-ray inspection systems. The HI-SCAN 6046si increases security through advanced technology.

Tunnel Size: 24.4 in. wide x 18.1 in. high


HI-SCAN 7555i X-ray Inspection Systems

HI-SCAN 7555i X-ray Inspection System

The HI-SCAN 7555i is a compact X-ray inspection system with a larger tunnel opening than the HI-SCAN 6040i. The larger tunnel is suitable for larger personal items as well as briefcases and handbags. With high image resolution and 24 Bit real time image processing, the HI-SCAN 7555i offers operators the same technology as the 6040i that reduces inspection times considerably. The man-machine interface is ergonomically designed to reduce operator fatigue. Typical penetration for the HI-SCAN 7555i is 31 mm of steel and the wire resolution is up to AWG 40.

Tunnel Size: 29.7 in. wide x 21.9 in. high

Back to top

HI-SCAN 7555si X-ray Inspection Systems

HI-SCAN 7555si X-ray Inspection System

The HI-SCAN 7555si has the same tunnel size and options as the HI-SCAN 7555i. The difference is the enhanced image resolution, increased steel penetration up to 35mm of steel, and increased wire resolution, 41 AWG. The improved technology produces extremely detailed X-ray images that have double the image resolution of previous X-ray inspection systems. The HI-SCAN 7555si is the choice for high security applications.

Tunnel Size: 29.7 in. wide x 21.9 in. high

Back to top

HI-SCAN 9075 X-ray Inspection System

The HI-SCAN 9075 is the ideal imaging system for scanning bulky, oversized objects. Heavy packages, up to 331 pounds, can be easily placed on the conveyor system, since the conveyor belt is only 13.7 inches above the ground. The HI-SCAN 9075 is also available as a mobile unit to facilitate changing screening locations. Typical penetration is up to 30 mm of steel and the wire resolution is up to AWG 38.

Tunnel Size: 35.8 in. wide x 30.3 in. high

Back to top

HI-SCAN 100100V X-ray Inspection System

HI-SCAN 100100V X-ray Inspection Systems

The HI-SCAN 100100V is a compact X-ray screening system that permits the inspection of bulky as well as small items without any loss of X-ray image quality. Ideal for shipping and receiving departments, this system is specifically designed to screen a large variety of package dimensions while meeting high security needs. The maximum conveyor load is 440 pounds. Typical penetration is up to 35 mm of steel and wire resolution is up to AWG 38.

Tunnel Size: 39.7 in. wide x 39.7 in. high

Back to top

HI-SCAN 145180 X-ray Inspection System

HI-SCAN 145180 X-ray Inspection Systems

The HI-SCAN 145180 is a low energy (160 kV) X-ray inspection system designed for palletized items. Its low conveyor bed makes it well suited for warehouses and receiving docks screening pallets and other large items. The maximum conveyor load is 4,409 pounds. Typical penetration is up to 35 mm of steel and wire resolution is AWG 38.

Tunnel Size: 57 in. wide x 70.9 in. high

Back to top

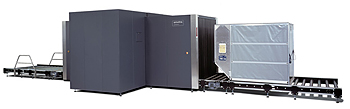

HI-SCAN 180180-300 kV X-ray Inspection System

HI-SCAN 180180-300 kV X-ray Inspection System

The HI-SCAN 180180-300 X-ray cargo inspection system is medium energy at 300 kV. Its excellent image presentation allows for high security inspections of pallets and other large containers, such as an LD-3 airfreight container, without the need to break apart shipments. The conveyor height is 12 inches off the floor, which allows for easy loading and unloading of heavy objects. The maximum conveyor belt load is 4,409 pounds for the standard version and 11,023 pounds for the heavy duty version. Typical penetration is up to 75 mm of steel and the wire resolution is AWG 32.

Tunnel Size: 71.3 in. wide x 71.3 in. high
