Freight and Cargo Solutions

Typical Applications:

  • Industrial Facilities
  • Nuclear Facilities
  • Shipping and Receiving Departments

HI-SCAN 100100T-2is

HI-SCAN 100100T-2is X-ray Inspection Systems

HI-SCAN 100100T-2is is designed for screening oversized baggage and bulky freight reaching up to 39 in. x 39 in. The HI-SCAN 100100T-2is is equipped with two generators arranged in a 90º opposition, thus beaming in two directions. Even with a second beam direction, this system is compact and highly space-saving.

Tunnel Size: 39.7 in. wide x 39.7 in. high

HI-SCAN 100100V-2is

HI-SCAN 100100V-2is X-ray Inspection Systems

HI-SCAN 100100V-2is is especially designed to meet the requirements and needs of airports, customs facilities, carriers, parcel services or wherever high security of a large variety of dimensions is required.

The HI-SCAN 100100V-2is equipped with two 160kV generators in a 90º opposition thus providing horizontal and vertical views of the screened object. Both views have 37mm of steel penetration and AWG 40 wire resolution.

Tunnel Size: 39.7 in. wide x 39.7 in. high

HI-SCAN 130130T-2is

HI-SCAN 6040i X-ray Inspection Systems

HI-SCAN 130130T-2is is a state-of-the art X-ray inspection system for the scanning of objects up to a size of 51" x 51". The particular advantage of the system is the equipment with two generators beaming in two directions. The second beam direction is displaced at 90º and thus facilitates reliable inspections of even tightly packed objects in only one process while shortening inspection times and increasing the effectiveness of the procedure.

Tunnel Size: 51.6 in. wide x 52 in. high

HI-SCAN 130130T-2is HD

HI-SCAN 130130T-2is HD X-ray Inspection Systems

HI-SCAN 130130T-2is HD is a heavy duty version of the 130130T-2is. It screens objects up to 57" x 47". The heavy duty roller conveyor allows the handling of heavy Loads up to 7700 lbs and therefore ideally suits the requirements for the inspection of heavy goods. The rugged conveyor design facilitates the use of forklifts and other heavy equipment to handle the goods to be inspected.

Tunnel Size: 51.6 in. wide x 48 in. high

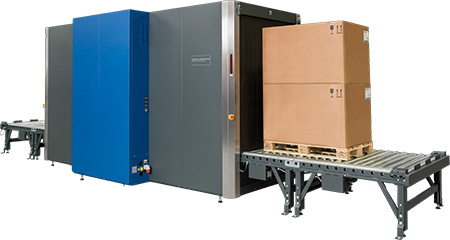

HI-SCAN 145180-2is pro

HI-SCAN 145180-2is pro X-ray Inspection Systems

HI-SCAN 145180-2is pro scans objects up to a size of 51" x 71". Due to the compact footprint and the large tunnel dimensions, the imaging system is perfectly suited for the inspection of air cargo, freight and palletized goods.

The HI-SCAN 145180-2is pro is equipped with two 200 kV generators in a 90° opposition thus providing a horizontal and a vertical view of the object. Both views have 58 mm of steel penetration and AWG 38 wire resolution. The maximum load is 11,025 lbs.

Tunnel Size: 57.8 in. wide x 71.7 in. high

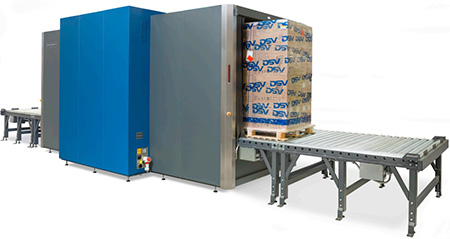

HI-SCAN 180180-2is pro

HI-SCAN 180180-2is pro X-ray Inspection Systems

The HI-SCAN 180180-2is pro is an advancement of the HI-SCAN 180180-300kV, especially designed to meet the needs and applications of airports, customs facilities, transportation operations, carriers, parcel services or wherever high security and total screening is required. It is a medium energy 300 kV X-ray cargo inspection system with tunnel dimensions of 71" x 71". It permits the inspection of pallets and LD-3 airfreight containers. The HI-SCAN 180180-2is pro is equipped with two 300kv generators thus beaming in two directions. Both views penetrate 75 mm of steel.

Tunnel Size: 71.3 in. wide x 71.3 in. high
